ΜΗΧΑΝΗ ΚΕΡΑΜΙΚΩΝ EXPLOIT 70
| Κωδικός: | RAI392N |
| Γραμμικός Κώδικας: | 8024648011138 |
| Συσκευασία: | PCS |

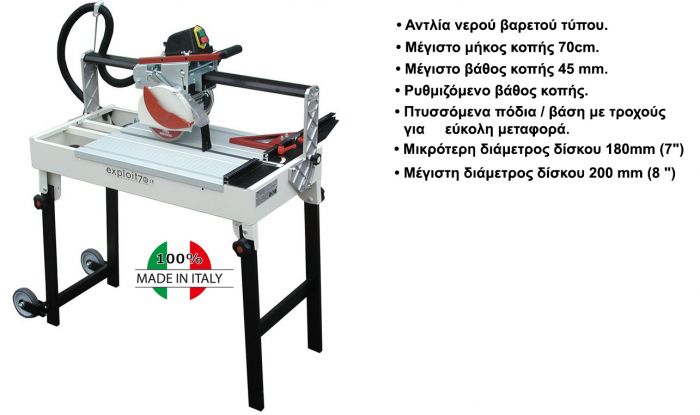

RAIMONDI EXPLOIT 70 ADV C/DISCO (392N)
Πληροφορίες
• For cutting porcelain, single-double fired, marble and granite.
• Heavy Duty water pump. Straight, 45° bevel (Jolly) & plunge cuts.
• Sliding motor assembly with cast aluminum housing and rail supports.
• Maximum length of cut 70 cm (27 1/2”). Extruded aluminum rail.
• Maximum depth of cut 45 mm (1 3/4”) in single pass – straight cut, 70 mm (2 3/4”) in double pass
• Tilting motor assembly for bevel cuts (jolly) from 0° to 47°.
• Adjustable cutting depth.
• Folding legs/stand with wheels for easy transport.
• Pivoting blade guard remains parallel with tile to ensure maximum cutting depth.
• Disc flanges sizes are 25,4 mm (1”) and (for Us version only) 15,9 mm (5/8”).
• Maximum blade diameter 200 mm (8“); minimum 180 mm (7“).
• Extruded aluminum table top prevents deflection (rocking tile).
• Supplied with: continuous rim Ø 180 mm (7”) diamond blade (for ceramic tile), key kit, dressing stone, user and maintenance manual.
